What makes gray iron casting essential in manufacturing? Known for its durability and vibration damping, it’s a cornerstone in industries worldwide. In this post, you’ll learn what gray iron casting is, its unique properties, applications, and how it compares to alternatives like ductile iron and aluminum castings. Dive in to explore why gray iron remains a top choice for engineers and manufacturers.

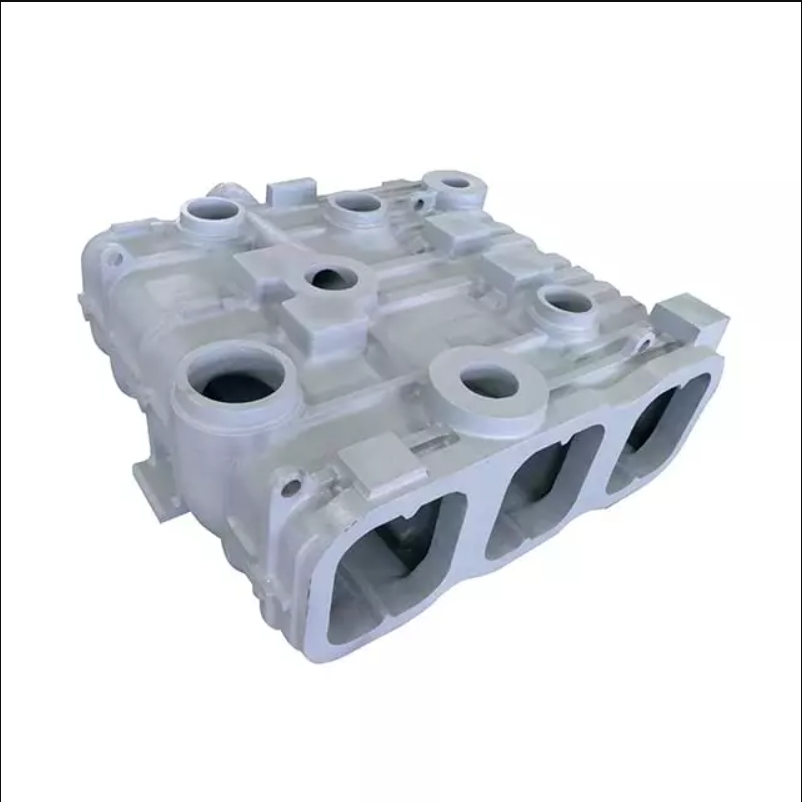

Gray iron casting is a widely-used manufacturing process for creating durable metal parts. Its name comes from the gray appearance of fractured surfaces, caused by graphite flakes in the material. These flakes give gray iron its unique properties, including vibration damping and wear resistance. Industries rely on it for applications like engine blocks, machine bases, and pump housings.
● Graphite Flakes:
These microscopic flakes are embedded in the iron matrix, improving thermal conductivity and vibration absorption.
● Vibration Damping:
Gray iron reduces vibrations effectively, making it ideal for machinery and automotive components.
● Wear Resistance:
Its surface strength helps withstand friction, extending the lifespan of parts.
Gray iron is primarily composed of iron, carbon, and silicon. The carbon exists in the form of graphite flakes, which influence its mechanical properties. The material's microstructure, consisting of ferrite and pearlite phases, determines its strength and hardness.
Graphite flakes act as stress concentrators, which reduce tensile strength but enhance machinability. Their distribution and size affect the material’s overall performance. Engineers test these flakes to ensure quality in critical applications.
The American Society for Testing and Materials (ASTM) categorizes gray iron based on tensile strength, hardness, and microstructure. Below is a simplified table of common ASTM classifications:
Grade | Tensile Strength (psi) | Typical Applications |
ASTM A48 Class 20 | 20,000 | Light-duty parts like covers |
ASTM A48 Class 40 | 40,000 | Engine blocks, pump housings |
ASTM A48 Class 60 | 60,000 | Heavy machinery, industrial tools |
Engineers analyze gray iron's microstructure using metallographic techniques. This involves examining the size, shape, and distribution of graphite flakes under a microscope. The balance between ferrite and pearlite phases determines the material's mechanical behavior, making this analysis crucial for quality control.
Gray iron casting remains a fascinating material due to its unique blend of properties and versatility. It’s no wonder industries continue to depend on it for both small and large-scale applications.
Gray iron casting stands out due to its unique properties, making it a preferred choice in manufacturing. Below are the key features that contribute to its popularity:
● Vibration Damping Capability:
Gray iron absorbs vibrations better than most metals. This reduces noise and improves stability, especially in machinery and automotive parts.
● Good Wear Resistance:
Components made from gray iron resist wear caused by friction. This makes it ideal for high-contact applications like brake rotors and pump housings.
● Cost-Effectiveness:
Compared to alternatives like ductile iron or aluminum, gray iron is more affordable. Its production process is simpler, lowering overall costs.
Gray iron casting offers several advantages, making it versatile across industries. Here are its top benefits:
Gray iron is highly castable, allowing manufacturers to create complex shapes and intricate designs. Engineers can mold it into everything from small gears to large machine bases.
Gray iron supports both small-scale and large-scale projects. Whether you're crafting a lightweight cover or a heavy-duty engine block, it adapts easily to different requirements.
Its properties make it useful in diverse sectors. Below is a table showing examples of industries and their typical uses for gray iron:
Industry | Common Applications |
Automotive | Engine blocks, brake rotors |
Machine Tools | Bases, frames |
Construction | Manhole covers, structural parts |
Pumps and Valves | Housing, bodies |
Gray iron’s combination of affordability, durability, and versatility keeps it in demand across multiple fields. Its unique properties ensure reliable performance in challenging environments.
Sand casting is the most common method for producing gray iron components. It involves pouring molten iron into a sand mold, which shapes the part as it cools. Below are key aspects of this process:
Green Sand vs. Air-Set Molding:
Green sand uses a mixture of sand, clay, and water, offering flexibility and low cost. Air-set molding uses chemically bonded sand, providing better dimensional accuracy but at a higher cost.
Benefits and Limitations:
Sand casting is cost-effective and supports complex designs, but it may have surface imperfections. Green sand is ideal for high-volume production, while air-set molding excels in precision applications.
Air-set molding uses resin-bonded sand to create molds with superior accuracy and strength. Here's how it works:
● Sand is mixed with resin and a catalyst, forming a hard mold.
● Molten iron is poured and solidifies within the mold, ensuring precise dimensions.
Advantages:
Air-set molding produces parts with tighter tolerances, smoother surfaces, and less post-processing. It’s preferred for components requiring high precision, like pump housings and valve bodies.
Ensuring the quality of gray iron casting involves rigorous testing methods. Below are the key techniques used during production:
● Spectrographic Analysis:
This method checks the chemical composition of gray iron, ensuring the correct balance of carbon, silicon, and other elements.
● Metallographic Analysis:
Engineers examine the microstructure under a microscope to assess graphite flake size, shape, and distribution. These factors directly impact mechanical properties.
Gray iron undergoes several mechanical tests to ensure durability and performance:
Test Type | Purpose | Example Methods |
Hardness | Measures surface strength | Brinell, Rockwell, Vickers |
Tensile | Evaluates material strength | Tensile strength testing |
Impact | Assesses resistance to force | Charpy or Izod impact tests |
Graphite Flake Testing:
The size and distribution of graphite flakes are critical for vibration damping and wear resistance. Engineers analyze these features to maintain product reliability.Gray iron casting relies on precise production methods and thorough quality control to meet industry standards. Each step ensures components perform well in demanding environments.
Gray iron casting plays a vital role across multiple industries. Its unique properties, such as vibration damping, wear resistance, and cost-effectiveness, make it indispensable in various applications.
Gray iron is widely used in automotive manufacturing due to its durability and ability to handle stress in high-performance environments. Key applications include:
● Engine Blocks and Cylinder Heads:
These components benefit from gray iron's thermal conductivity and vibration damping, ensuring efficient heat management and reduced noise.
● Brake Components:
Brake rotors and drums rely on gray iron's wear resistance, providing long-lasting performance under friction-heavy conditions.
Feature | Automotive Benefit |
Vibration damping | Reduced noise and smoother rides |
Wear resistance | Longevity in high-friction parts |
Gray iron is a preferred material for machine tools due to its stability and precision. Common applications include:
● Machine Bases:
Heavy-duty bases made from gray iron provide stability and reduce vibrations during operation.
● Precision Components:
Gray iron’s dimensional accuracy ensures reliable performance in parts requiring exact measurements.
Gray iron excels in fluid-handling applications, making it ideal for pumps and valves. Here’s how it’s used:
● Pump Bodies:
Corrosion-resistant gray iron ensures durability when handling liquids in industrial settings.
● Valve Components:
Its strength and wear resistance support valves in high-pressure environments.
The construction sector relies on gray iron for its durability and ability to withstand harsh conditions. Key applications include:
● Manhole Covers:
Gray iron’s strength makes it perfect for heavy-duty covers in urban infrastructure.
● Structural Elements:
Components requiring vibration damping, like beams and supports, benefit from gray iron’s unique properties.
Gray iron finds specialized uses in heavy machinery and equipment. Examples include:
● Mining Equipment:
Components like crushers and grinders made from gray iron resist wear and handle extreme conditions.
● Agricultural Machinery:
Gray iron parts ensure durability and reliability in farming tools and vehicles.
Industry | Typical Applications |
Mining | Crushers, grinders |
Agriculture | Tractor parts, plows |
Energy | Turbine housings, generator frames |
Gray iron casting remains a versatile material, supporting industries where strength, durability, and cost-effectiveness are essential.
Gray iron competes with other casting materials like ductile iron and aluminum in performance, cost, and application suitability. Let’s explore their differences.
Gray iron and ductile iron differ significantly in structure and mechanical properties. These differences affect their applications and costs.
● Gray Iron:
Contains graphite flakes, which enhance vibration damping and machinability.
● Ductile Iron:
Features graphite nodules, improving tensile strength and impact resistance.
Property | Gray Iron | Ductile Iron |
Tensile Strength | Lower | Higher |
Impact Resistance | Moderate | Excellent |
Vibration Damping | Superior | Moderate |
● Cost Comparison:
Gray iron is more affordable, making it ideal for high-volume, cost-sensitive projects.
● Application Suitability:
Gray iron works well for components needing vibration damping, like engine blocks. Ductile iron is better for parts requiring high strength, such as gears and axles.
Aluminum and gray iron differ in weight, corrosion resistance, and strength. Each material has unique advantages.
Feature | Gray Iron | Aluminum |
Weight | Heavy | Lightweight |
Corrosion Resistance | Moderate | Excellent |
Vibration Damping | Superior | Limited |
Strength | High | Moderate |
● Gray Iron:
Provides superior strength and vibration damping, making it ideal for heavy-duty applications.
● Aluminum:
Lightweight and corrosion-resistant, perfect for aerospace and automotive components.
● Gray Iron:
● Used in machine bases, brake rotors, and pump housings where durability matters.
● Aluminum:
Preferred for lightweight parts like engine components and structural frames.
Gray iron stands out for its strength and cost-effectiveness, while ductile iron and aluminum excel in specialized scenarios. Choosing the right material depends on the project’s needs.
Gray iron castings come in a wide range of sizes and weights, making them versatile for various industries and applications. Let’s dive into the details.
Gray iron castings vary from small, intricate components to massive, heavy-duty parts. This flexibility supports diverse needs.
● Examples:
Engine components, like pistons or brackets, often weigh just a few ounces.
● Applications:
Ideal for precision parts requiring fine details and compact designs.
● Examples:
Machinery bases or structural supports can weigh several tons.
● Applications:
Used in construction, heavy machinery, or industrial equipment needing durability and stability.
Size Category | Typical Weight | Common Applications |
Small | Ounces to pounds | Engine parts, machine fittings |
Large | Tons | Machine bases, construction beams |
Gray iron castings are available in a variety of dimensions, tailored to specific applications. The flexibility in size allows for custom designs.
● Small Parts:
Lengths of 2–6 inches, widths under 4 inches, and heights less than 3 inches.
● Large Components:
Lengths exceeding 10 feet, widths up to 6 feet, and heights reaching several feet.
Part Type | Length | Width | Height |
Small Component | 2–6 inches | ≤4 inches | ≤3 inches |
Large Casting | >10 feet | ≤6 feet | Several feet |
● Custom Designs:
Manufacturers can adjust dimensions for unique projects.
● Industry Demands:
Size adaptability ensures compatibility with diverse applications, from automotive to construction.
Gray iron castings are unmatched in their ability to meet varied size and weight requirements, making them a cornerstone of industrial manufacturing.
Gray iron casting offers many advantages but comes with its own set of challenges and limitations. Understanding these helps manufacturers make informed decisions.
Gray iron’s mechanical properties, while suitable for many applications, have some drawbacks.
● Comparison:
Gray iron has less tensile strength than ductile iron or steel.
● Impact:
It’s less suitable for high-stress applications requiring extreme durability.
● Graphite Flakes:
The flake-like graphite structure reduces flexibility, making it brittle under impact.
● Applications Affected:
Parts exposed to sudden forces or shocks may require alternative materials.
Property | Gray Iron | Ductile Iron | Steel |
Tensile Strength | Moderate | Higher | Very High |
Ductility | Low | High | Excellent |
Impact Resistance | Limited | Superior | Outstanding |
Manufacturing gray iron castings presents difficulties, especially for large-scale or precision components.
● Large Castings:
Achieving precise dimensions becomes harder as size increases.
● Impact:
May require additional machining to meet specifications.
● Process Dependency:
● Surface quality varies based on casting methods used (e.g., sand casting vs. shell molding).
● Applications:
Components needing smooth finishes may require post-processing.
Challenge | Cause | Solution |
Dimensional Accuracy | Size complexity | Advanced machining |
Surface Finish | Process differences | Secondary treatments |
Gray iron casting processes impact the environment, requiring careful management to minimize harm.
● Production Process:
Melting and casting consume significant energy, increasing carbon footprint.
● Efficiency Measures:
Modern furnaces and energy-saving techniques can reduce usage.
● Casting Waste:
Sand, slag, and other byproducts need proper disposal or recycling.
● Sustainability Efforts:
Manufacturers are adopting greener practices to improve sustainability.
Environmental Factor | Challenge | Improvement |
Energy Use | High consumption | Efficient equipment |
Waste Management | Disposal issues | Recycling methods |
Gray iron casting, while versatile and widely used, requires careful consideration of its mechanical, production, and environmental challenges to ensure optimal results.
Gray iron casting stands out as a reliable choice for many industries. Its cost-effectiveness, versatility, and performance make it an attractive option.
Gray iron casting is known for being budget-friendly without sacrificing quality.
● Comparison:
Cheaper than ductile iron, steel, or other advanced alloys.
● Impact:
Reduces production costs, making it ideal for tight budgets.
● Efficiency:
Works well for small batches or moderate-scale manufacturing.
● Applications:
Perfect for industries balancing cost and output.
Cost Factor | Gray Iron | Ductile Iron | Steel |
Material Cost | Low | Moderate | High |
Production Volume | Medium to Low | High | High |
Gray iron casting adapts to diverse industries and complex design needs.
● Examples:
Automotive, construction, machinery, and even household appliances.
● Flexibility:
Serves both heavy-duty industrial needs and lightweight consumer goods.
● Design Capability:
Produces intricate shapes, thin walls, and detailed patterns.
● Impact:
Enables custom designs for specialized applications.
Industry | Common Applications | Advantages of Gray Iron |
Automotive | Engine blocks, brake discs | Vibration damping |
Construction | Structural supports | Durability |
Machinery | Bases, housings | Wear resistance |
Gray iron casting excels in situations demanding durability, vibration control, and wear resistance.
● Graphite Content:
Absorbs vibrations effectively, reducing noise and stress on components.
● Applications:
Ideal for engine blocks, pumps, and industrial equipment.
● Durability:
Handles abrasive environments well, extending service life.
● Industrial Use:
Performs reliably in factories or heavy machinery setups.
Performance Feature | Benefit | Typical Applications |
Vibration Damping | Reduces stress, noise | Engines, pumps |
Wear Resistance | Long-term durability | Industrial machinery |
Gray iron casting combines affordability, adaptability, and reliable performance, making it a preferred material across industries.
Gray iron casting offers affordability, versatility, and durability. Its ability to handle vibration and wear makes it essential in manufacturing.
From automotive to industrial applications, it serves various industries effectively. Consider gray iron casting for reliable, cost-effective solutions tailored to your needs.
A: Gray iron casting is used in automotive, construction, machinery, and appliances for components like engine blocks, brake discs, and housings.
A: Gray iron has graphite flakes, making it brittle, while ductile iron has spheroidal graphite, offering higher strength and flexibility.
A: No, its lower tensile strength limits use in applications requiring extreme durability or impact resistance.
A: Automotive, construction, and industrial machinery benefit due to its vibration damping, wear resistance, and affordability.
A: Methods like sand casting or shell molding impact surface finish and dimensional accuracy, requiring careful process control.
A: Methods include hardness testing, tensile strength evaluation, and microstructure analysis to verify performance and reliability.
A: Energy-intensive production and waste management are challenges, but recycling and efficient processes improve sustainability efforts.
